Tetris Style Shelves

Sorry I've not posted on this blog for a few weeks (I've been busy having more children!) So it's meant I've slowed down on the work front a little bit.
I have, however, just completed this shelving unit for a friend/customer and I'm rather pleased with the result.
The brief was to make up blocks in tetris style shapes and have a unit where all the blocks could be rearranged if you wanted to. Unusually I worked with the customer on this project and we got on like a house on fire.

The first step was to construct the bottom storage unit that would support all the blocks. We made sure this was really strong as there was to be a fair bit of weight above it.

The first blocks we made were in MDF. Once we made a few we decided that achieving a good finish was going to be a problem so we decided to switch our material to WBP ply, leaving the cut edges exposed.

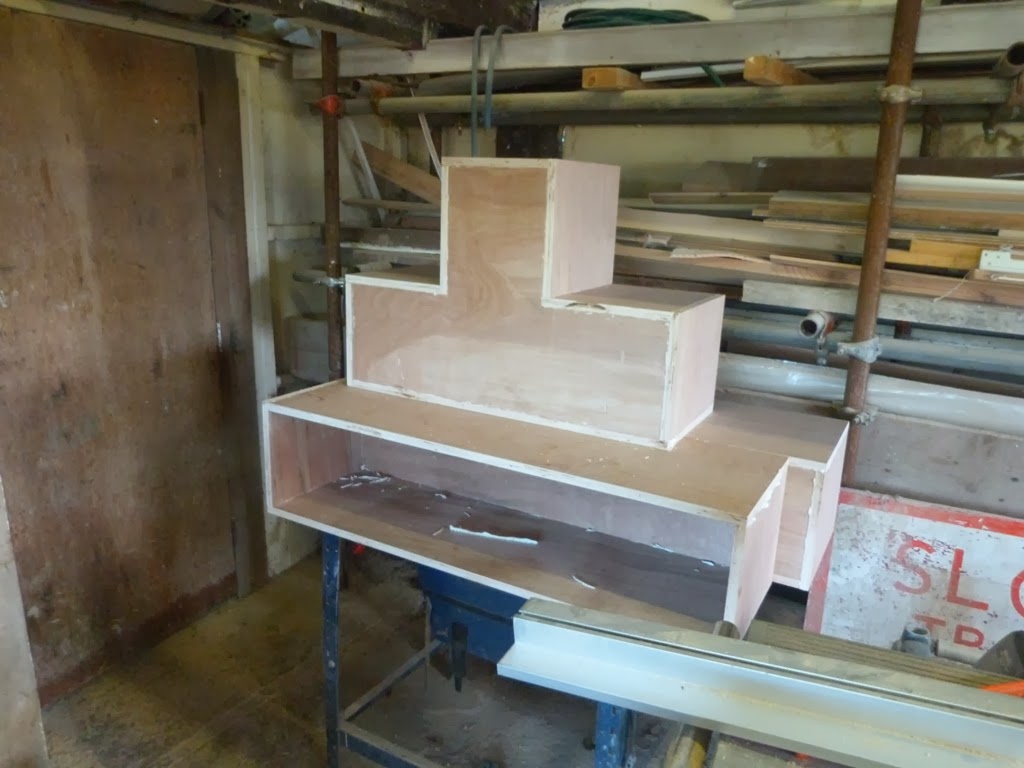

The first unit we made like this looked good so we set up a mini production line

We made a total of 14 blocks, all joined together with biscuit joints and a PU glue

Starting to stack the blocks in the unit. They were all made with the measurement 265mm as the standard "unit" size, so that it's completely interchangeable

Brian using a homemade beeswax polish to finish the shelves. This picture gives a good idea of how big the units are.

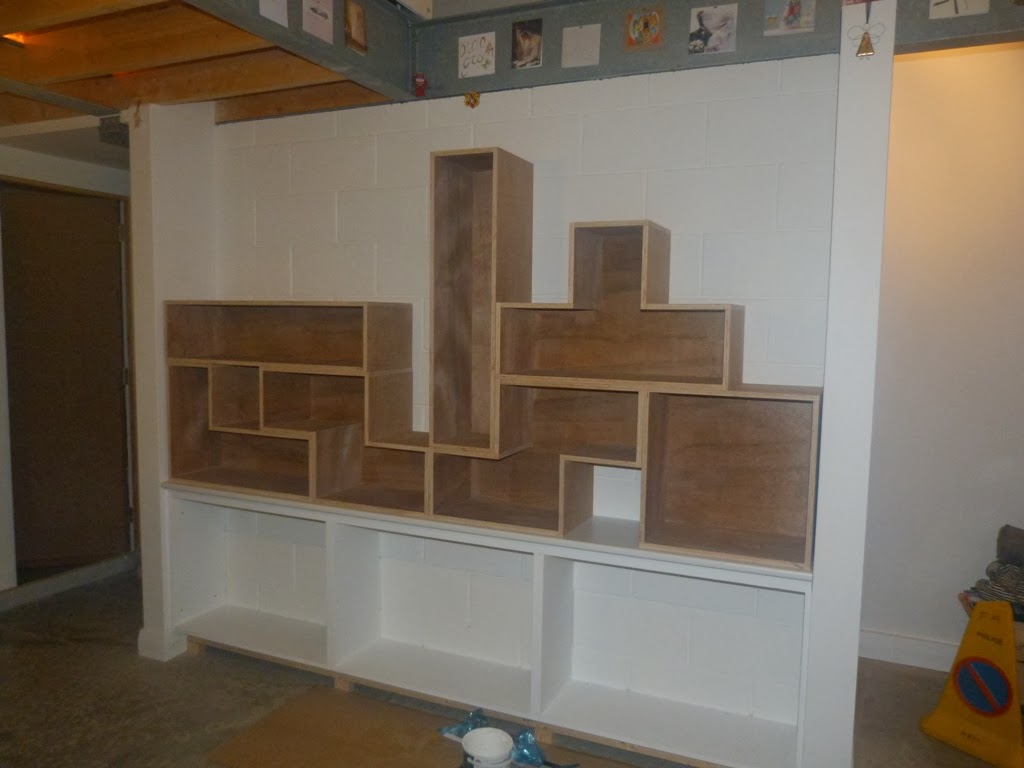

The completed unit with storage cupboards underneath

The completed unit

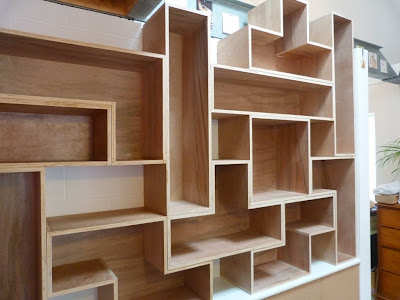

Completely interchangeable and a really good fit

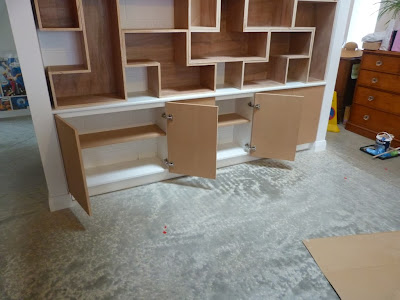

Three sets of cupboards under the tertis blocks make really useful storage. These doors will be painted white.

We made the doors and hung them on kitchen hinges so it gives a clean finish when they're all shut

Some interesting patterns

I'm lucky in my job that I enjoy what I do, but when I get a project like this I enjoy it even more. I've built some amazing things over the years but this is pretty near the top of the list!
I've still got a few more projects to do in this house so watch this space!
